ANSI B16.5 F316L Stainless Steel Forged Flange

Productivity:
500ton/Month
Place of Origin:
China
Supply Ability:
500ton/Month
  • Mr. waldo cao

Basic Info

Model No.:  ANSI B16.5

Product Description

Model NO.: ANSI B16.5 Type: Welding Flange Structure: Flanges Sealing Surface: RF Size: Dn15-Dn600 Process: Forged Trademark: TYX Specification: ANSI, DIN. JIS HS Code: 73072100 Standard: ANSI, DIN, JIS, GOST, BSW Material: Stainless Steel Connection: Welding Manufacturing Way: Forging Pressure: 150#-2500# Wall Thickness: Std Sch40s Sch80s etc Transport Package: Plywooden Case or Pallet Origin: China
ANSI B16.5 F316L Stainless Steel Forged Flange
Weld Neck Stainless Steel Flanges:

1. Size: 15mm-6000mm

2. Type: Weld Neck

3. Standard: ANSI B16.5, DIN, JIS, GOST, BS, En and so on

4. Material: F304/F304L/F316/F316L/F321/F347H/F316Ti/s3275/904L/S31803/2205/F51.

5. Class: 150#-2500#

6. Our main clients are from Turkey, Italy, France, Spain, South Africa, Moroco, Dubai, Iran, Syria, Singapore, Vietnam, Austria, USA, Canada, Mexico, Korea, Thailand, India, Bulgaria, Russia and so on

7. Usage: Petroleum industry, Refinery Company, fertilizer industry, power station, shipbuilding, onshore platform
Materials Carbon Steel: ASTM A105. ASTM A350 LF1. LF2, CL1/CL2, A234, S235JRG2, P245GH and so on
P250GH, P280GHM 16MN, 20MN ,20#
Stainless Steel: ASTM A182, F304/304L, F316/316L and so on
Alloy Steel: A182 F11, A182F22, A182F12, A182 F5, A182F91, A182 F9 and so on

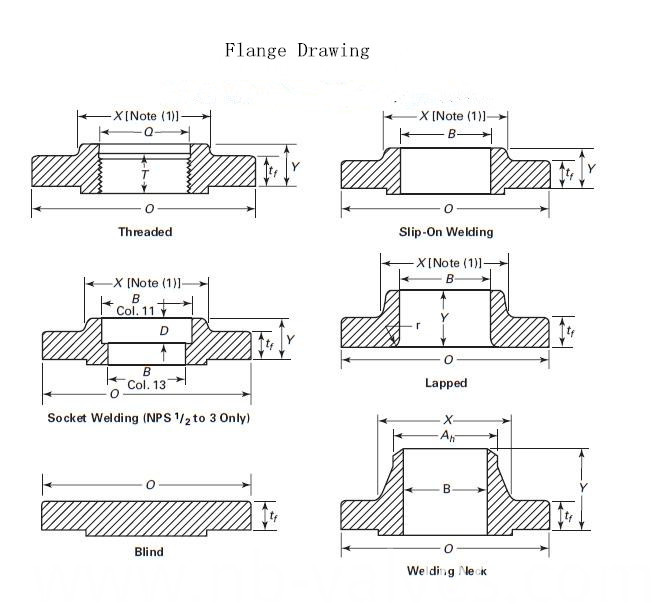

Types Slip On Plate Flange/Plate Flange , Slip On Hub Flange/Bossed
Welding Neck Flange/WN flange/ Loose Flange/Lapped Flange /Backing Flange
Blind Flange/Blank flange, Lap Joint Flange /LJ Flange
Socket Weld Flange/SW Flange   Threaded Flange/Screwed Flange
Loose Flange/Lapped Flange Backing Flange RTJ /o-Ring
Custom Flange/Special Flange   Hot/Cold/Electro Gavanized Flange
Standards ANSI/ASME/ASA B16.5 FLANGES, ANSI B16.47 A/B FLANGES
JIS B 2220 FLANGES, KS B 1503, DIN SERIES, UNI, EN1092-1, BS4504
BS 10 TABLE D/E/F FLANGES, SANS 1123 FLANGES/SABS 1123
GOST12820-80/GOST12821-80, NFE29203/NS/AS/ISO/AWWA FLANGES
Pressure &Ratings 150LBS, 300,600,900,1500,2500 ANSI, ASA B16.5
PN6 PN10 PN16 PN25 PN40 PN64-DIN/UNI
PN6 PN10 PN16 PN25 PN40 PN63-EN1092-1/BS4504
PN0.6Pa, PN1.0Pa, PN1.6. PN2.5,PN4.0-GOST12820-80
PN0.6Pa, PN1.0Pa, PN1.6. PN2.5,PN4.0, PN6.3. -GOST12821-80
600kPa, 1000.1600.2500.4000.-SANS 1123
5KG, 10KG, 16KG, 20KG, 30KG, 40KG-JIS B2220/KS B1503
TABLE D, TABLE E ,TABLE F-BS 10, AS2129
CLASS D, CLASS E, CALSS F, AWWA C207
Surface Treatment Rust Prevention , Black Paint Coating or Phosphating Treatment with Black Color
Varnish Paint Coating, Varnish Oil Coating,
Electro Galvanizing Coating (Cold Galvanizing, Color Golden or silvery white, Coating thickness 20~30μm)
Hot Dip Galvanizing Coating (Coating Thickness 200μm around)
Technical Forging
Application Water works, Shipbuilding industry, Petrochemical & Gas industry, Power industry, Valve industry
and general pipes connecting projects etc.
Inspection Quality Control System-Well Equipments and Machinery-Well Workers and Engineers
Packing Wooden Pallets or Wooden Cases or As Customers' Requirements
Payment Terms L/C Or 30 % Advance By T/T and The balance Will be Paid After the copy of B/L
Delivery Time 30 Days \after the Advance or the L/C
After-Sales Service Orders and Products Tracking System

Contact us if you need more details on Forged Flanges. We are ready to answer your questions on packaging, logistics, certification or any Other aspects about Steel Flanges、Stainless Steel Flanges. If these products fail to match your need, please contact us and we would like to provide relevant information.
