Home > Products > UV CCD/CMOS SENSORS > UV Coated Ilx526A CCD Linear Image Sensor

UV Coated Ilx526A CCD Linear Image Sensor

Productivity:
10000PCS
Place of Origin:
China
Supply Ability:
10000PCS
Certificate:
ISO
  • Mr. waldo cao

Basic Info

Model No.:  ILX526A

Product Description

Model NO.: ILX526A Output Signal Type: Digital Type Material: Plastic Customized: Customized Type1: Full Frame Advantage2: Faster Speed Iseasy Transport Package: Packed by Carton Origin: China Type: CCD Sensor Production Process: SemiConductor Integrated Certification: ISO Pixel Size: 7um*200um Advantage1: Low Power Consumption Trademark: SONY/OEM Specification: SGS HS Code: 85299049 1.CCD:

Sony CCD ILX526A   UV Coated (without glass)
Sony CCD ILX511     UV Coated (without glass)
Sony CCD ILX511b   UV Coated (without glass)
Sony CCD ILX554b   UV Coated (without glass)
Toshiba CCD 1304DG     UV Coated (without glass)

2.CMOS
SONY  ICX CMOS UV Coated (without glass)
CANON  APS  CMOS UV Coated (without glass)

3.UV coating of sensors :
In order  to extend  the usable spectral region of  the sensors,  they can be provided with a specialized coating.  In  the case of applications with UV light this coating emits visible light, which is detected by the sensor. Such a coating lowers the lower end of the spectral sensitivity from 350nm down to 150nm.
Starting  from  400nm  the  coating  is  almost  transparent,  so  the  sensitivity  in  the  visible  and  in  the  near  infrared  is  hardly affected.  For  such  an UV  coating  above  all  sensors with  large  pixels  are  suitable. Some  often  requested  sensors  can  be supplied with UV coating from stock (see table below). For Other sensors this is possible on request.
Type Manufacturer Pixel number Pixel size
[μm2]
Data rate
fps of pixel frequency
ILX511-UV Sony 2048 14,0 x 200,0 2 MHz
ILX554B-UV Sony 2048 14,0 x 56,0 2 MHz
TCD1304DG-UV Toshiba 3648 8,0 x 200,0 1 MHz

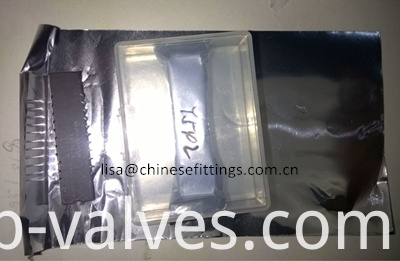

4. Package:
Spectro Imaging Sensors CCD with UV Coating

PACKAGE STRUCTURE
PACKAGE MATERIAL Cer-DIP
LEAD TREATMENT TIN PLATING
LEAD MATERIAL 42 ALLOY
PACKAGE MASS 5.20g

5. After sales service:
5.1 When receiving the goods, please count the quantity, if anything less than ordered, please inform within three days. We will check our record and re-send accordingly.
5.2 After receiving the goods, please test and inform if there is any quality problem within one month. If there is quality problem in fact, we will replace or return payment accordingly. (IF THE QUALITY PROBLEM MADE BY MAN-MADE DAMAGE BY USER, WE WONT REPLACE FREE)
