1/2 Inch EVR6 Danfoss Type Solenoid Valve

  • 1/2 Inch EVR6 Danfoss Type Solenoid Valve
  • 1/2 Inch EVR6 Danfoss Type Solenoid Valve
  • 1/2 Inch EVR6 Danfoss Type Solenoid Valve
  • 1/2 Inch EVR6 Danfoss Type Solenoid Valve

1/2 Inch EVR6 Danfoss Type Solenoid Valve

    Payment Type: T/T,Paypal,Western Union
    Terms of Trade: FOB,CFR,CIF
    Min. Order: 1 Piece/Pieces
    Delivery Time: 15 Days
    Packaging: Carton
    Productivity: 100000pcs per month
    Brand: BRANDO
    Transportation: Ocean,Land,Air
    Place of Origin: China
    Supply Ability: 100000pcs per month
    Certificate: CE
    Port: Ningbo,Shanghai

Basic Info

Model No.: EVR6-012S

Actuator: Electric

Connection Form: Thread

Type: Direct Acting

Material: Brass

Pressure: Ordinary Pressure

Valve Structure: Direct-Acting Piston Structure

Power Supply: AC Solenoid Valve

Usage: Temperature Control

Standard: GB

Application: Industrial Usage, Water Industrial Usage, Household Usage

Product Description

1/2 Inch EVR6 Danfoss Type Solenoid Valve

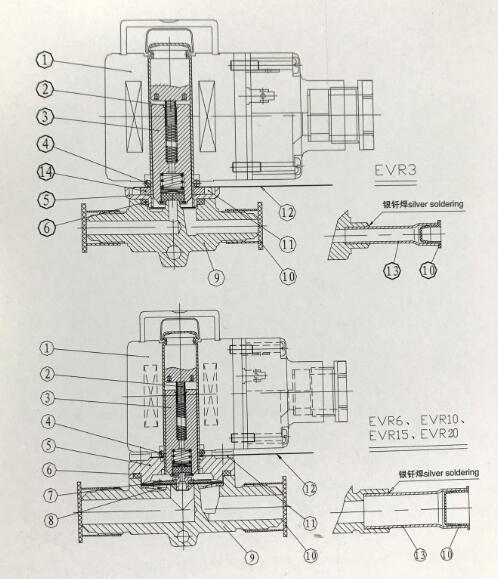

EVR6-012S Danfoss Type Solenoid Valve Structure:

1 Solenoid Coil (10w)
2 Return Spring
3 Iron Core Component, Plunger
4 O-ring
5 Valve Bonnet
6 Sealing
7 Valve Core
8 Baffle
9 Valve Body
10 Cap
11 Fixing Screw
12 Label
13 Copper Tube
14 Steel Washer
1

Model EVR solenoid valve is direct-operated or servo-operated valve, which is applicable to one direction flow;

Model EVR solenoid valve is used on the liquid, air suction or hot vapor piping of a freezer, cold store and air condintioning unit;

The valve seat of mode EVR solenoid valve is well sealed with perfect sealing performance;

Model EVR solenoid valves with various voltage solenoids are available;

Both packed and separated Model EVR solenoid valves are available and it means the valve body could be supplied separately from the solenoid.


EVR6-012S Solenoid Valve Features:

1, Mostlt is normally closed

2, The maximum design temperature is 105℃

3, 100-mesh filter is contained at the suction end, which is replaceable

4, 24w high power solenoid and max. operating pressure differential

5, MOPD is 4.2 Mpa

6, The solenoid coil with various power supply for choice

7, The clamped joint solenoid is easy to be mounted or dismounted only with one screwdriver

8, The sealed solenoid has a long service life and it can be used even in an adverse circumstance



EVR Refrigeration Technical Datas:

EVR solenoid valve drawings

Model
Connection
H1
H2
H4
L
L2
KV Factor (m³/h)
SAE inlet/outlet ODF inlet/outlet (Solder) Inch mm Inch mm Inch mm Inch mm Inch mm Inch mm
EVR3-014 EVR3-014S 1/4 6 0.5 14 2.8 71 - - 4.0 102 0.3 7 0.27
EVR3-038 EVR3-038S 3/8 10 0.5 14 2.9 73 - - 4.6 117 0.4 10
EVR6-038 EVR6-038S 3/8 10 0.5 14 3.1 79 - - 4.4 111 0.4 10 0.8
EVR6-012 EVR6-012S 1/2 12.8 0.5 14 3.1 79 - - 5.0 127 0.4 10
EVR10-012 EVR10-012S 1/2 12.8 0.6 16 3.1 79 - - 5.0 127 0.4 10 1.9
EVR10-058 EVR10-058S 5/8 16 0.6 16 3.1 79 - - 6.3 160 0.5 12

EVR15-058S 5/8 16 0.7 19 3.4 86 - - 6.9 176 0.5 12 2.6

EVR15-078S 7/8 22 0.7 19 3.4 86 - - 6.9 176 0.7 17

EVR20-078S 7/8 22 0.8 20 3.5 90 - - 7.5 191 0.7 17 5

EVR20-118S 1 1/8 28.8 0.8 20 3.5 90 - - 8.4 214 0.8 22

EVR22-138S 1 3/8 35 0.8 20 3.5 90 - - 11.1 281 1 25 6

EVR25-118S 1 1/8 28.8 1.5 38 5.4 138 2.8 72 10.0 256 0.8 22 10

EVR25-138S 1 3/8 35 1.5 38 5.4 138 2.8 72 11.0 281 1 25

EVR32-138S 1 3/8 35 1.9 47 4.4 111 2.1 53 11.0 281 1 25 16

EVR32-158S 1 5/8 42 1.9 47 4.4 111 2.1 53 11.0 281 1.1 29

EVR40-158S 1 5/8 42 1.9 47 4.4 111 2.1 53 11.0 281 1.1 29 25

EVR40-218S 2 1/8 54 1.9 47 4.4 111 2.1 53 11.0 281 1.3 34



EVR6-012S Technical Parameters:

Applicable Refrigerant HCFC or HFC or customized
Applicable Medium Temperature -30~105℃
Applicable Ambient -40~65℃
Standard Voltage of Solenoid Coil AC380V AC220V 50/60HZ
Allowable Voltage Fluctuation for Solenoid +10%~-15%
Connection of Solenoid Terminal box

If you only need repair parts, we also can supply.


Welcome your contact with any question, we will response at once. Thanks!
